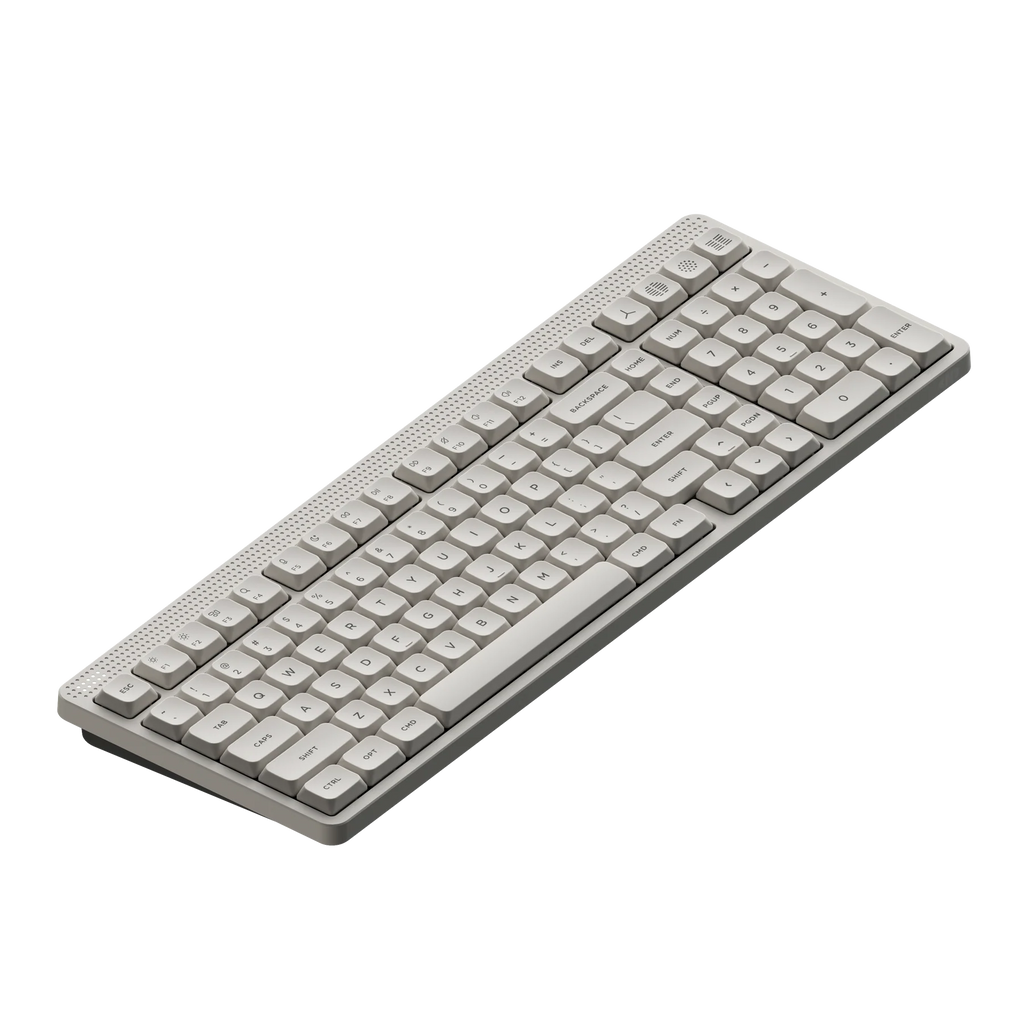

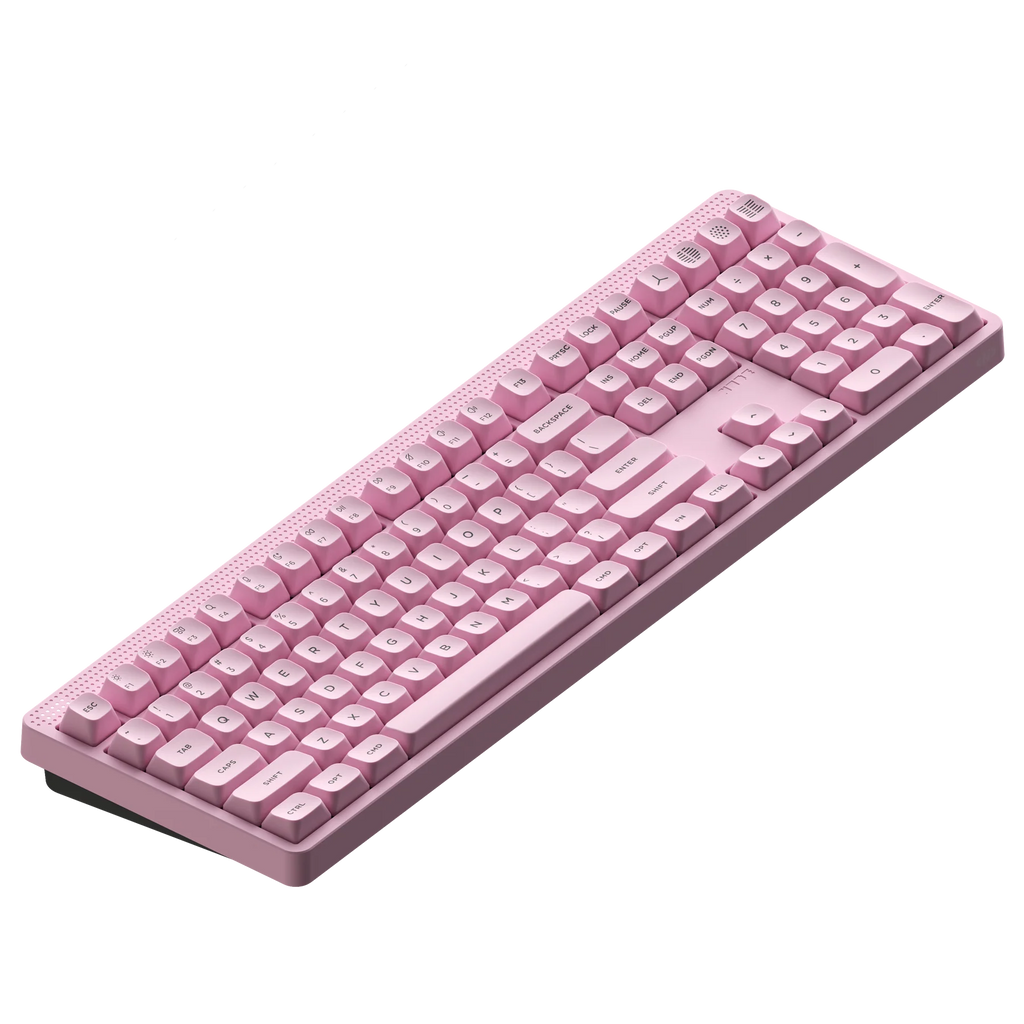

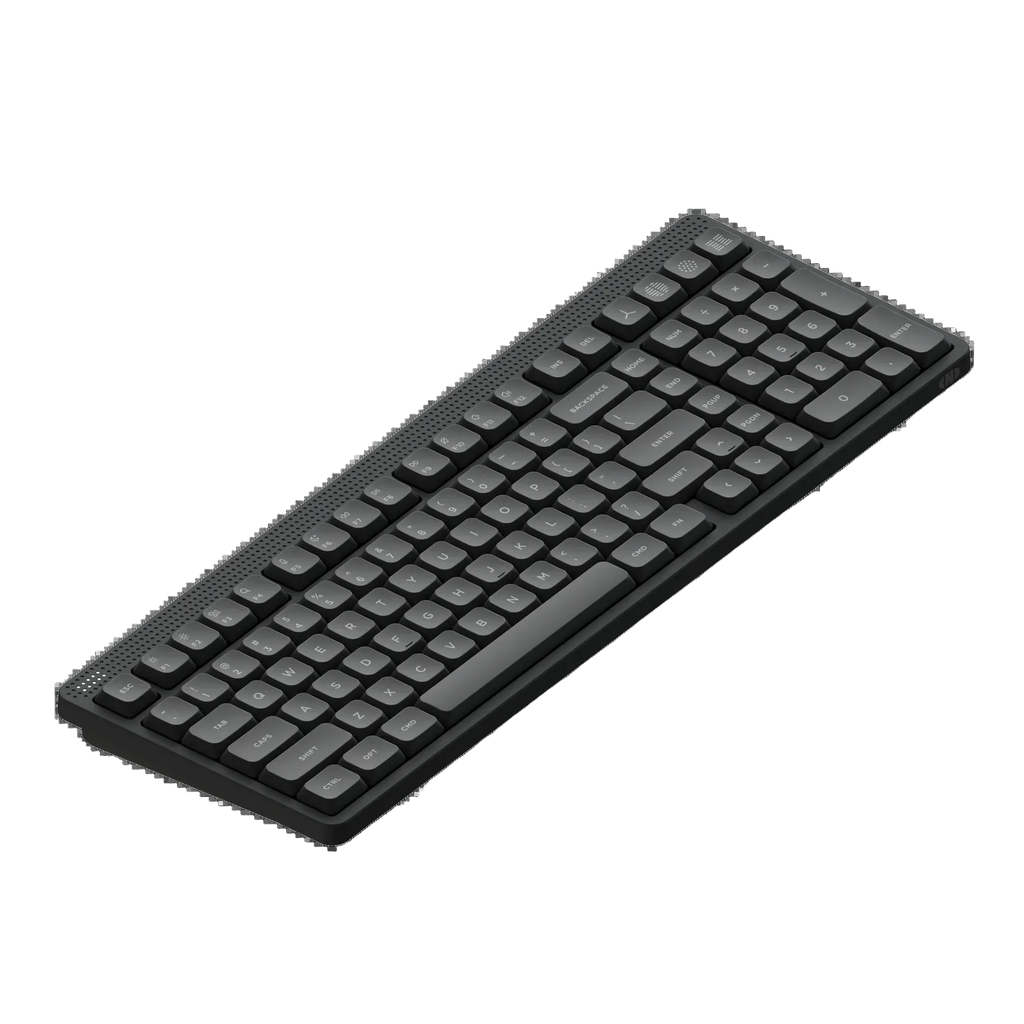

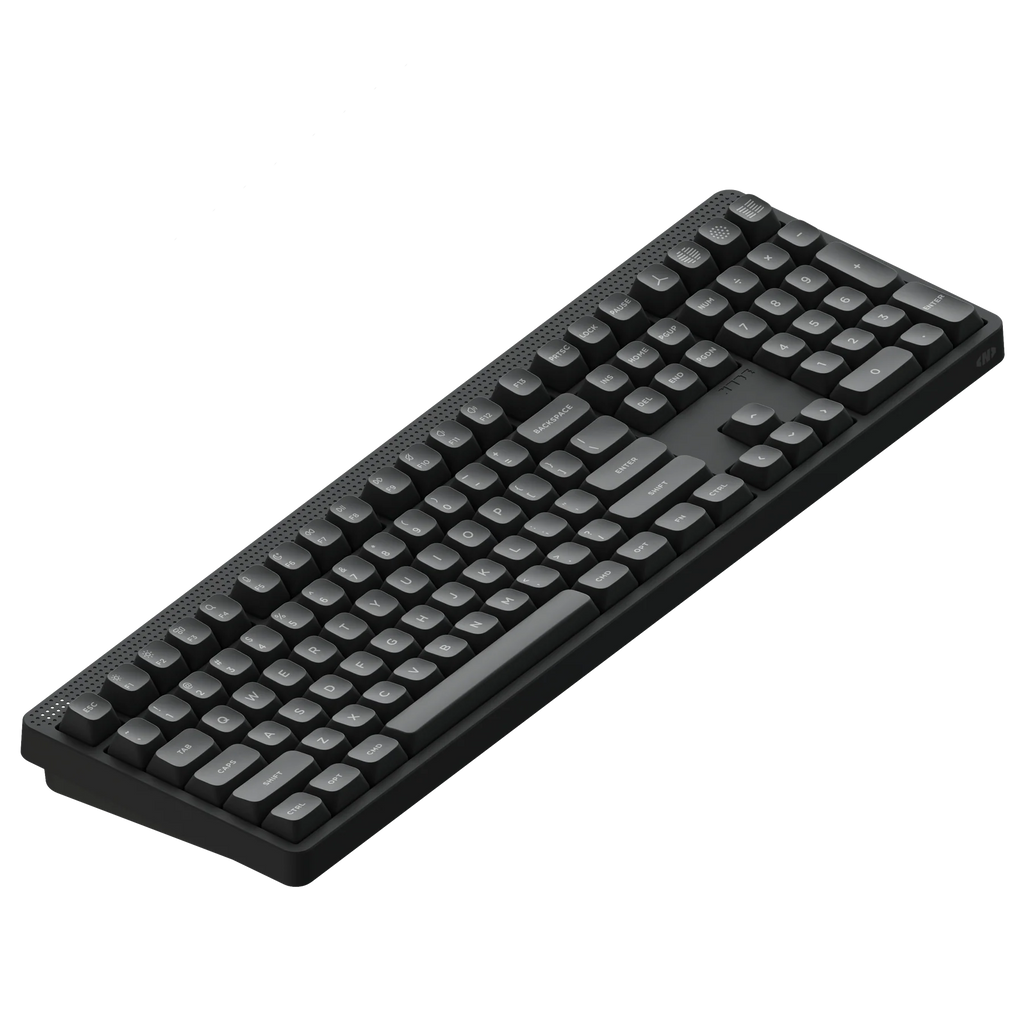

[Pre-Order] NuPhy Node 100
Shipping Timeline
Description
Specifications
Specifications — Node 100 (Low-Profile)
|
Specification |
Details |
|---|---|
|
Layout |
ANSI 100% |
|
Number of Keys |
103 |
|
Switch Type |
Low-Profile 3.0 |
|
Stabilizers |
Plate-mounted |
|
Mounting Style |
Gasket |
|
Hot-Swap Support |
Yes |
|
N-Key Rollover |
Yes |
|
Backlight |
North-facing RGB-LED (20 modes) |
|
Connectivity |
2.4GHz / Bluetooth 5.0 / Wired USB-C |
|
Polling Rate |
1000Hz (2.4G & Wired), 125Hz (Bluetooth) |
|
Compatible Systems |
macOS / Windows / Android / iOS |
|
Operating Temperature |
−10℃ to 50℃ |
|
Top Case |
ABS |
|
Bottom Case |
ABS |
|
Plate Material |
PC |
|
Keycaps |
Double-shot nSA |
|
Dimensions |
398.6 × 141.1 × 14 mm |
|
Weight |
787.3 g |
|
Typing Angles |
4° / 8° / 11° |
|
Battery Capacity |
3000mAh |
|
Battery Life |
60–100h (lights on) / up to 1000h (lights off) |
|
Warranty |
1 Year |
Specifications — Node 100 (High-Profile)
|
Specification |
Details |
|---|---|
|
Layout |
ANSI 100% |
|
Number of Keys |
109 |
|
Switch Type |
High-Profile 3.0 |
|
Stabilizers |
Plate-mounted |
|
Mounting Style |
Gasket |
|
Hot-Swap Support |
Yes |
|
N-Key Rollover |
Yes |
|
Backlight |
North-facing RGB-LED (20 modes) |
|
Connectivity |
2.4GHz / Bluetooth 5.0 / Wired USB-C |
|
Polling Rate |
1000Hz (2.4G & Wired), 125Hz (Bluetooth) |
|
Compatible Systems |
macOS / Windows / Android / iOS |
|
Operating Temperature |
−10℃ to 50℃ |
|
Top Case |
ABS |
|
Bottom Case |
ABS |
|
Plate Material |
PC |
|
Keycaps |
Double-shot mSA |
|
Dimensions |
441.8 × 141.7 × 18.9 mm |
|
Weight |
1084.3 g |
|
Typing Angles |
6° / 9° / 12° |
|
Battery Capacity |
4000mAh |
|
Battery Life |
60–100h (lights on) / up to 1000h (lights off) |
|
Warranty |
1 Year |
In the Box (Node 100)
-
1× Node 100 Keyboard (Low-Profile or High-Profile)
-
1× 2.4G Receiver
-
1× USB-C to USB-C Cable
-
1× USB-C to USB-A Adapter
-
1× Keycap / Switch Puller
-
Extra Keycaps
-
Quick Start Guide (FAQ & Instructions)
